Ground Fault Detection and Insulation Monitoring Figures

Figures created by Norbert Doerry for the Ground Fault Detection and Insulation Monitoring paper and presentation

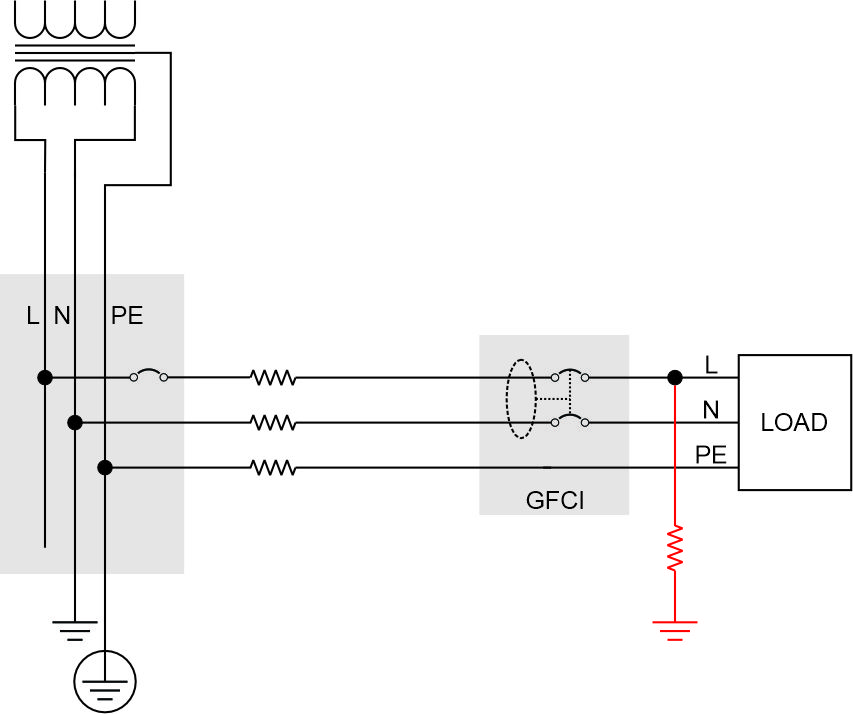

Solidly Grounded System - GFCI - Ground Fault on L

Image (C) Copyright 2026 by Norbert Doerry – licensed via CC BY 4.0

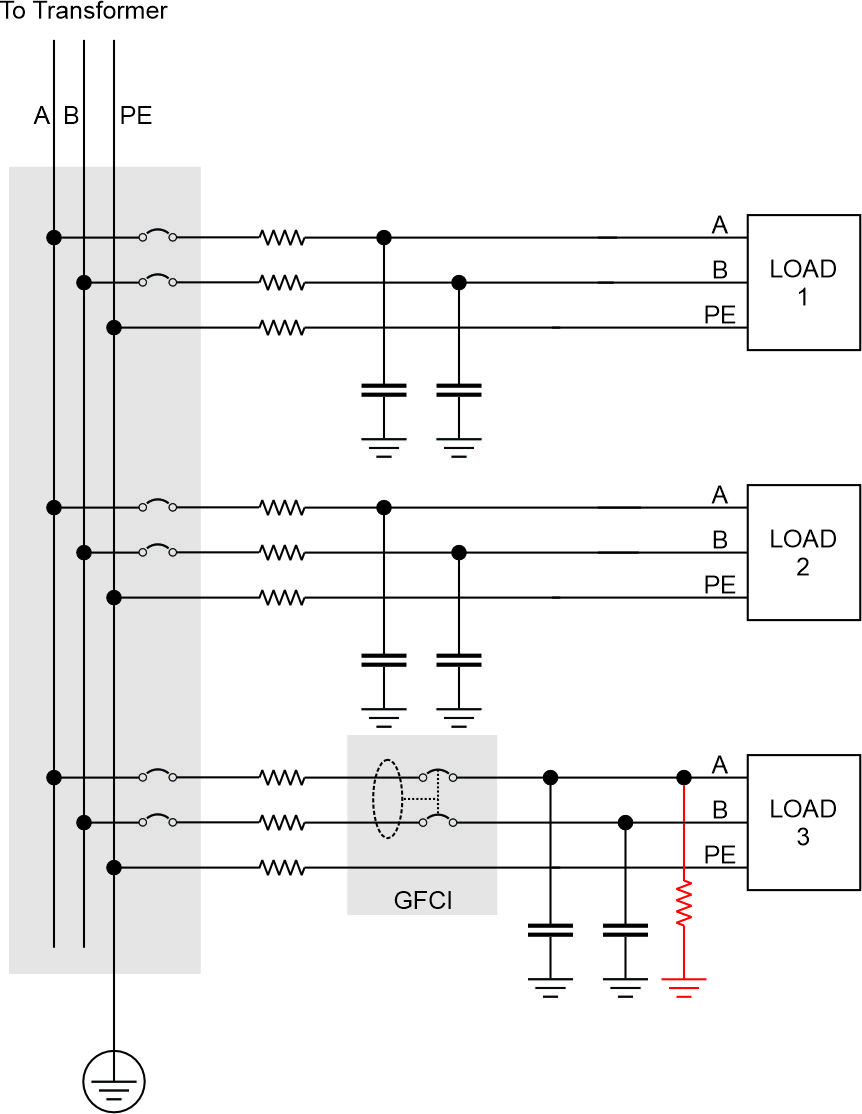

Solidly Grounded System - GFCI - Ground Fault on N

Image (C) Copyright 2026 by Norbert Doerry – licensed via CC BY 4.0

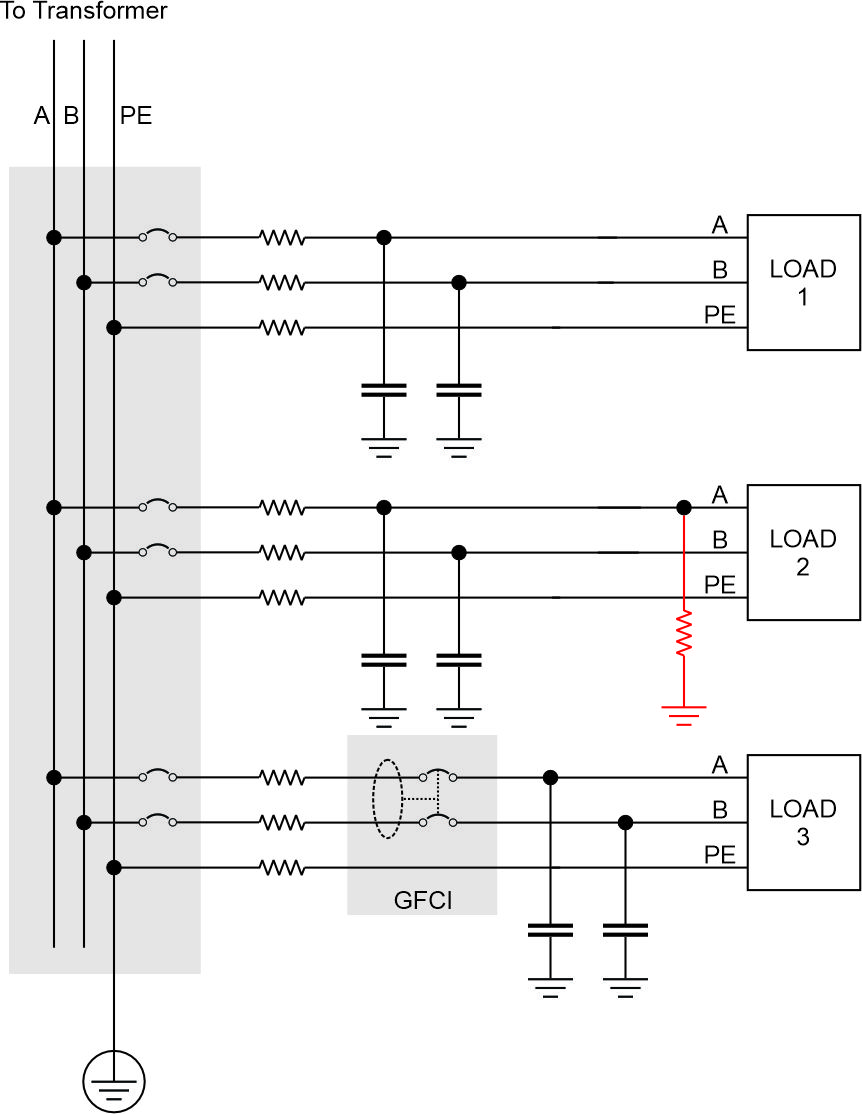

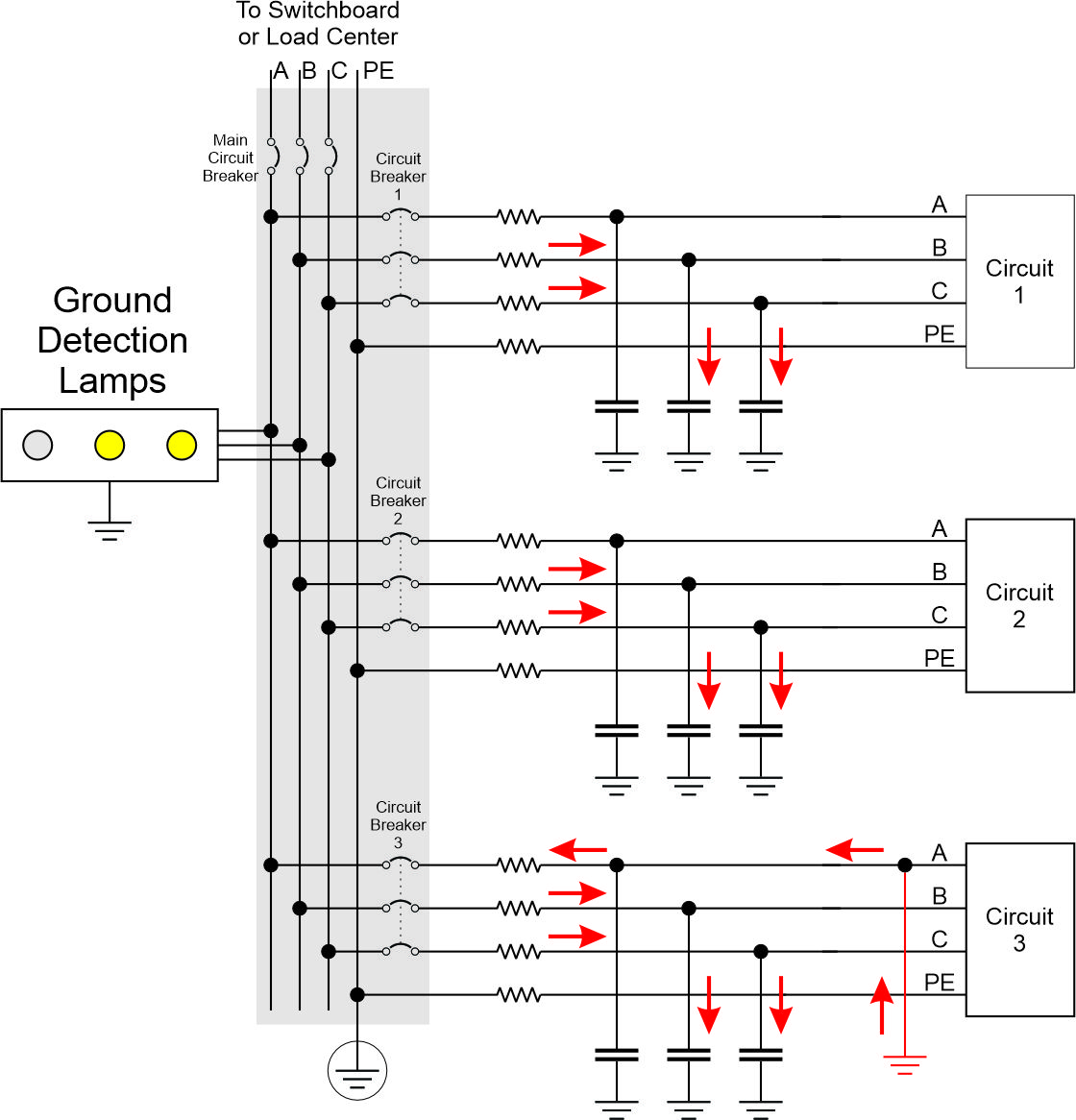

Ground fault on ungrounded power system

Image (C) Copyright 2026 by Norbert Doerry – licensed via CC BY 4.0

Ground fault on ungrounded power system

Image (C) Copyright 2026 by Norbert Doerry – licensed via CC BY 4.0

Ground fault on ungrounded power system

Image (C) Copyright 2026 by Norbert Doerry – licensed via CC BY 4.0

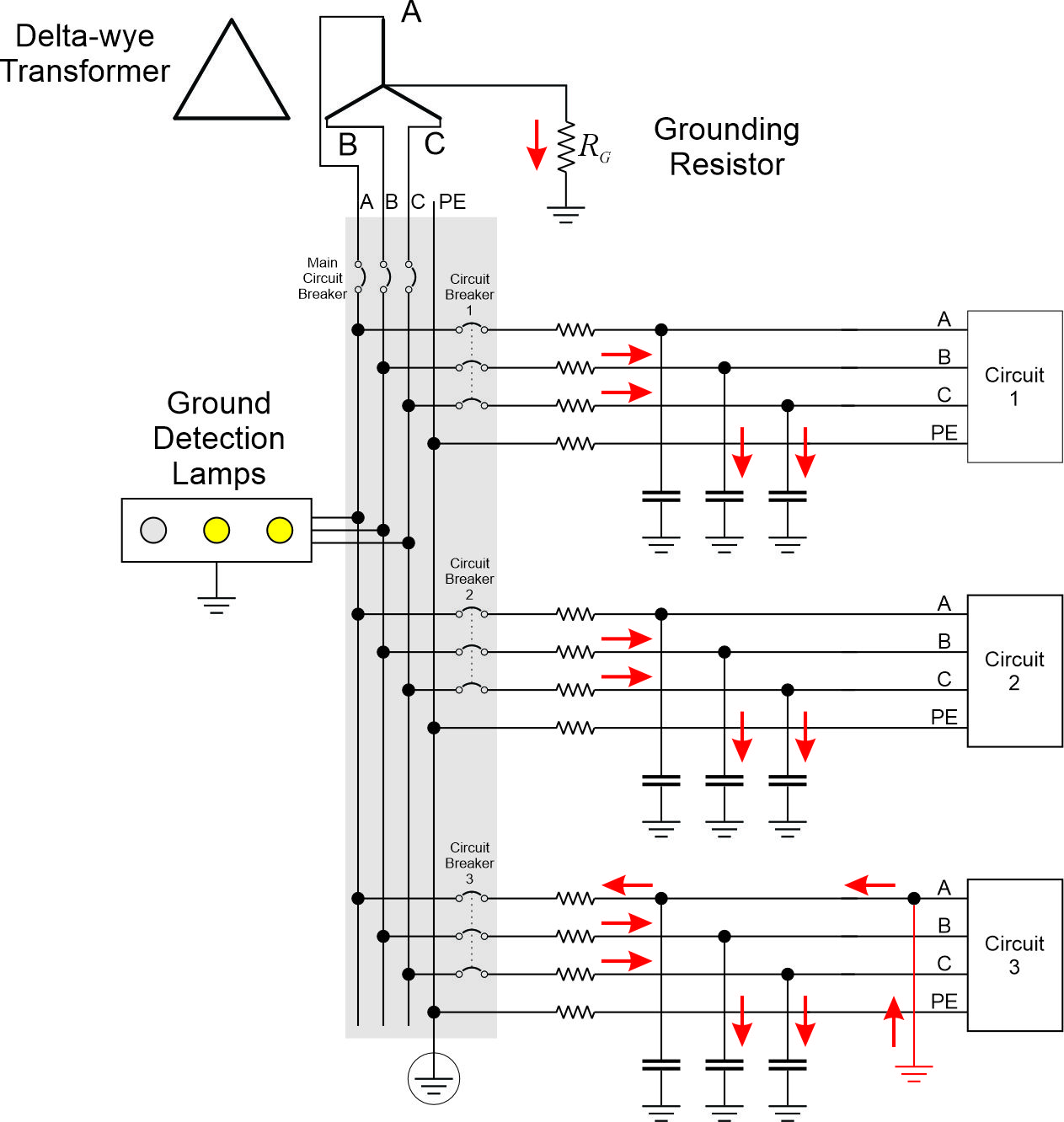

Ground fault on high resistance grounded power system

Image (C) Copyright 2026 by Norbert Doerry – licensed via CC BY 4.0

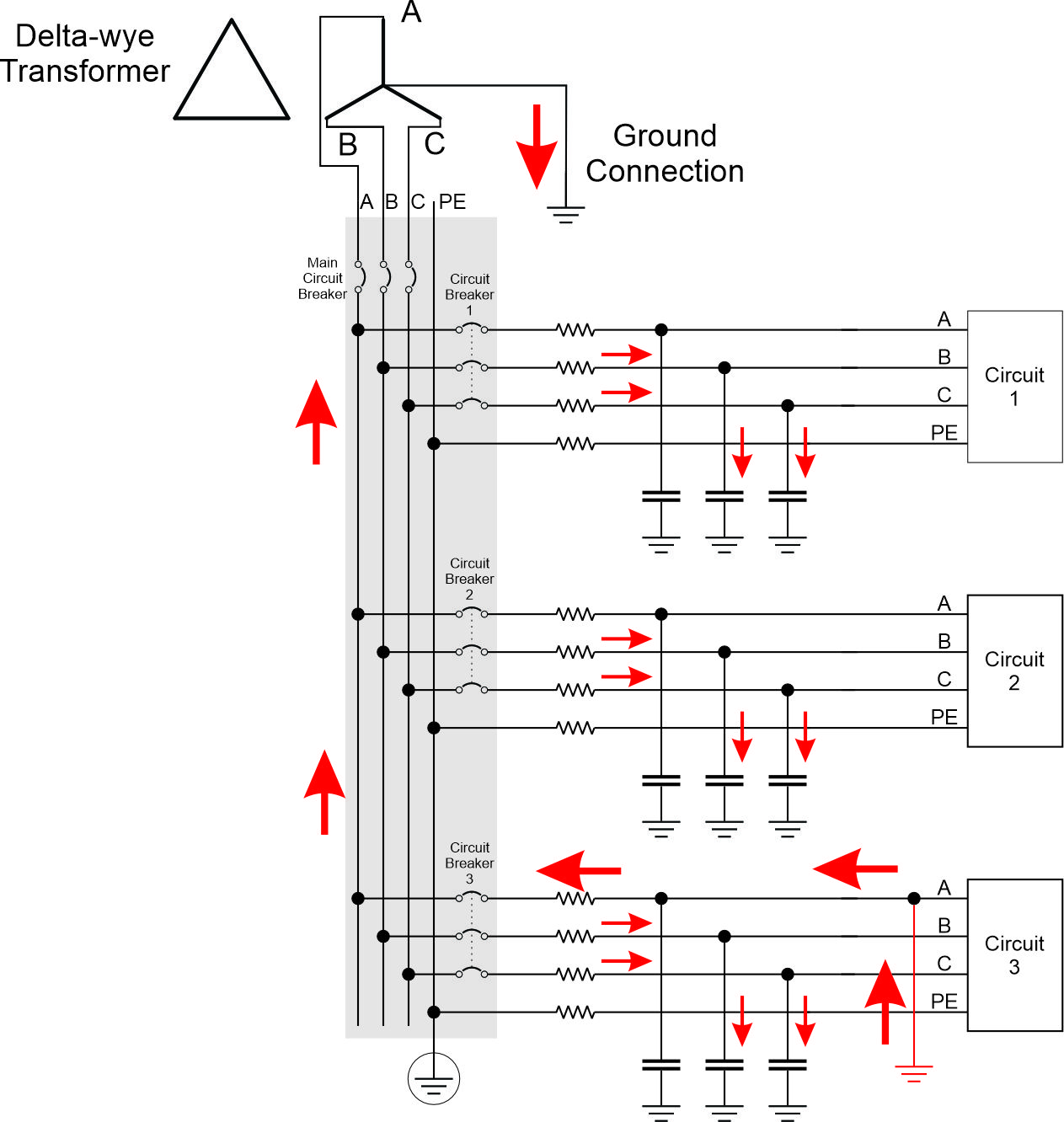

Ground fault on solidly grounded power system

Image (C) Copyright 2026 by Norbert Doerry – licensed via CC BY 4.0

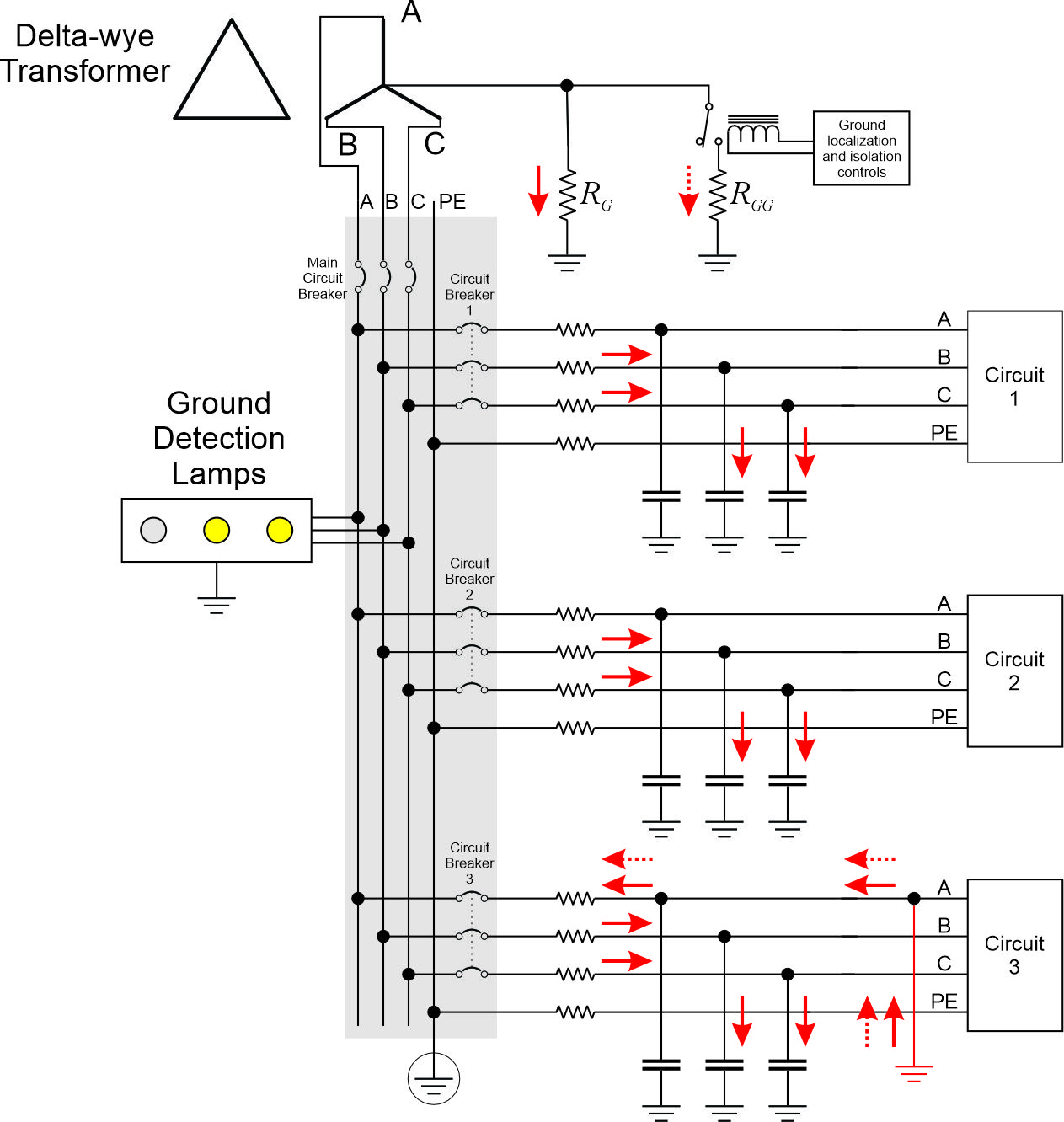

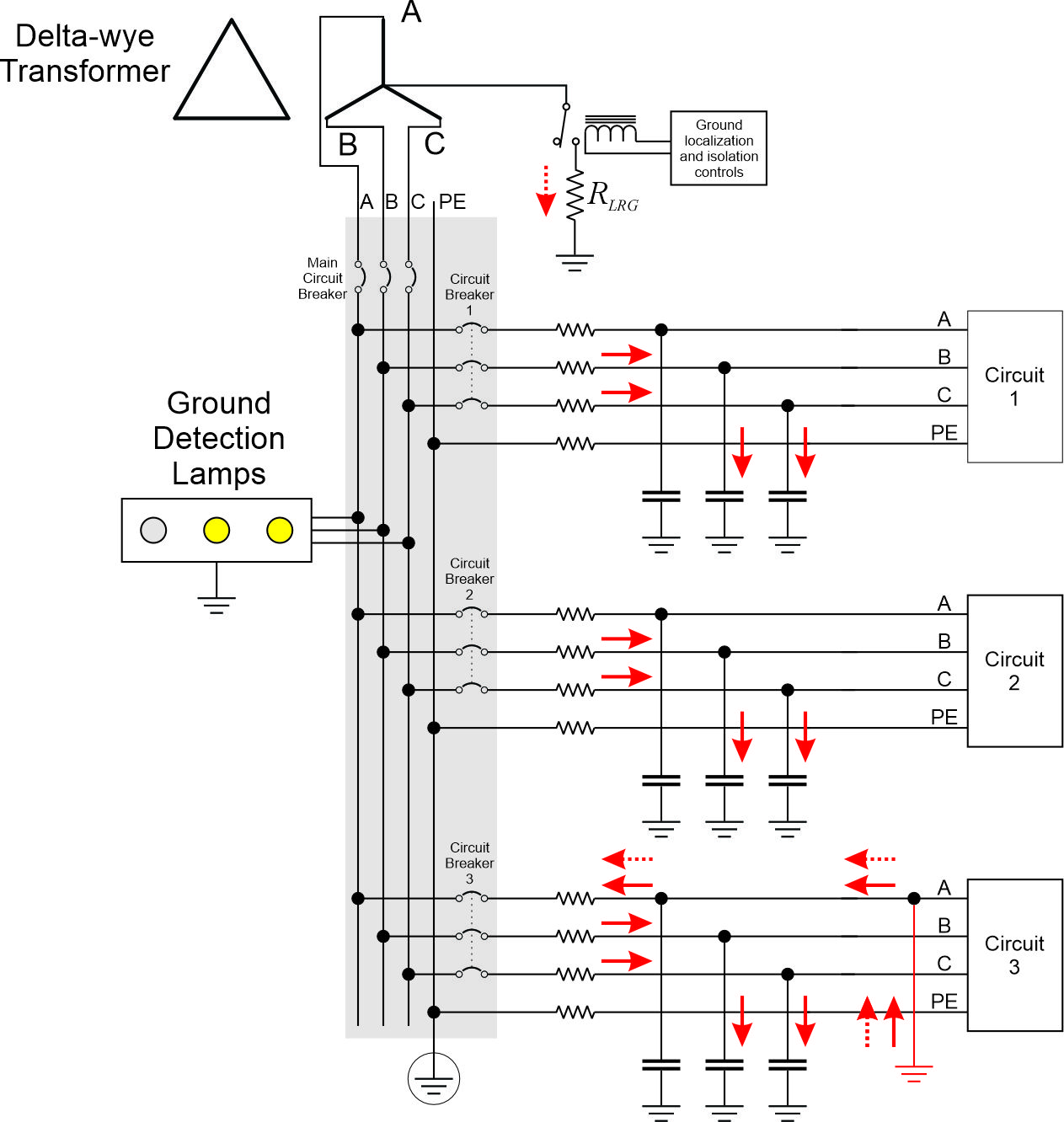

Ground fault on ungrounded power system - Low Resistance Ground Resistor Fault Clearing

Image (C) Copyright 2026 by Norbert Doerry – licensed via CC BY 4.0

Ground fault on high resistance grounded power system - pulsing grounding resistor

Image (C) Copyright 2026 by Norbert Doerry – licensed via CC BY 4.0

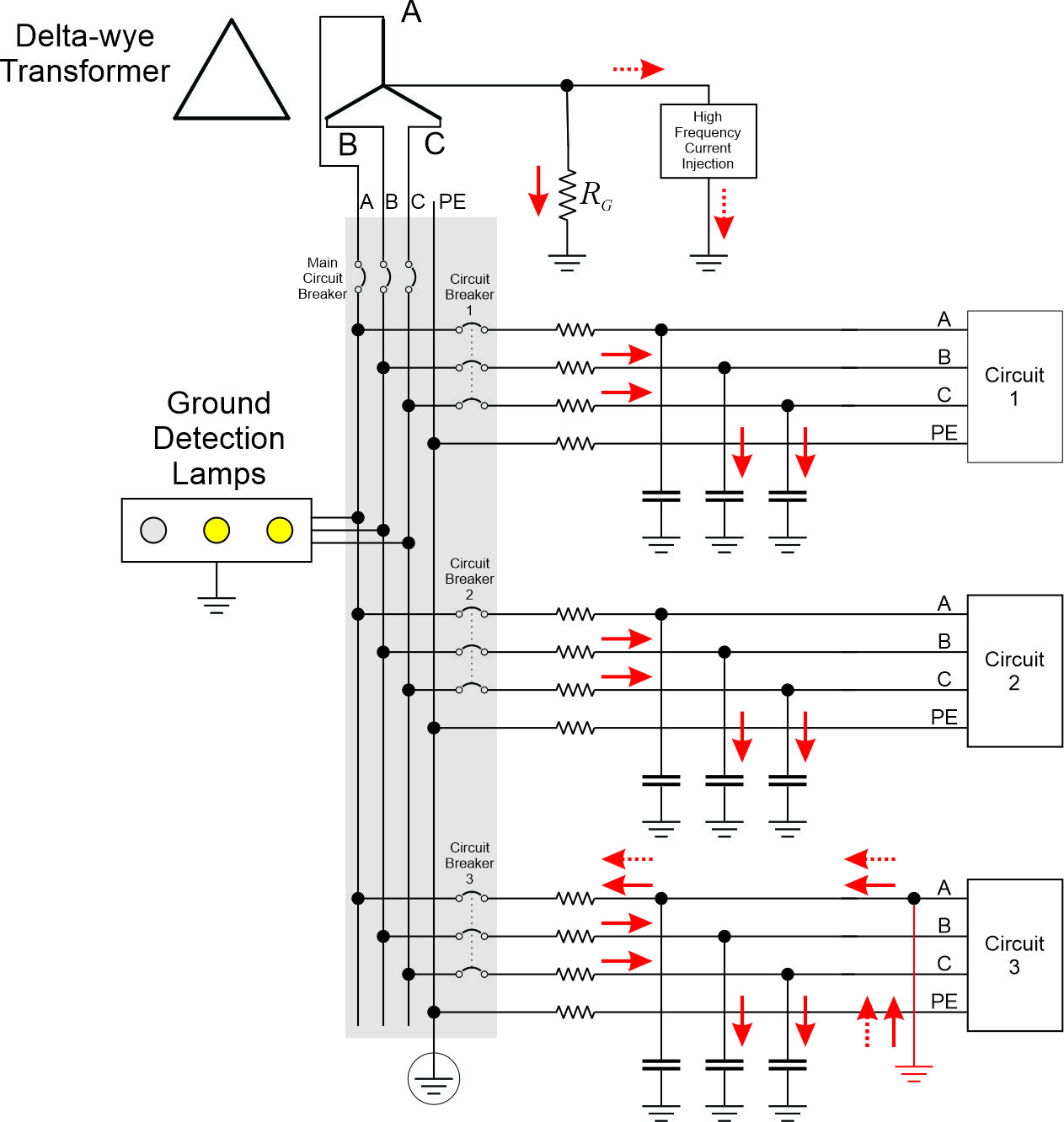

Ground fault on high resistance grounded power system - High frequency current injection

Image (C) Copyright 2026 by Norbert Doerry – licensed via CC BY 4.0

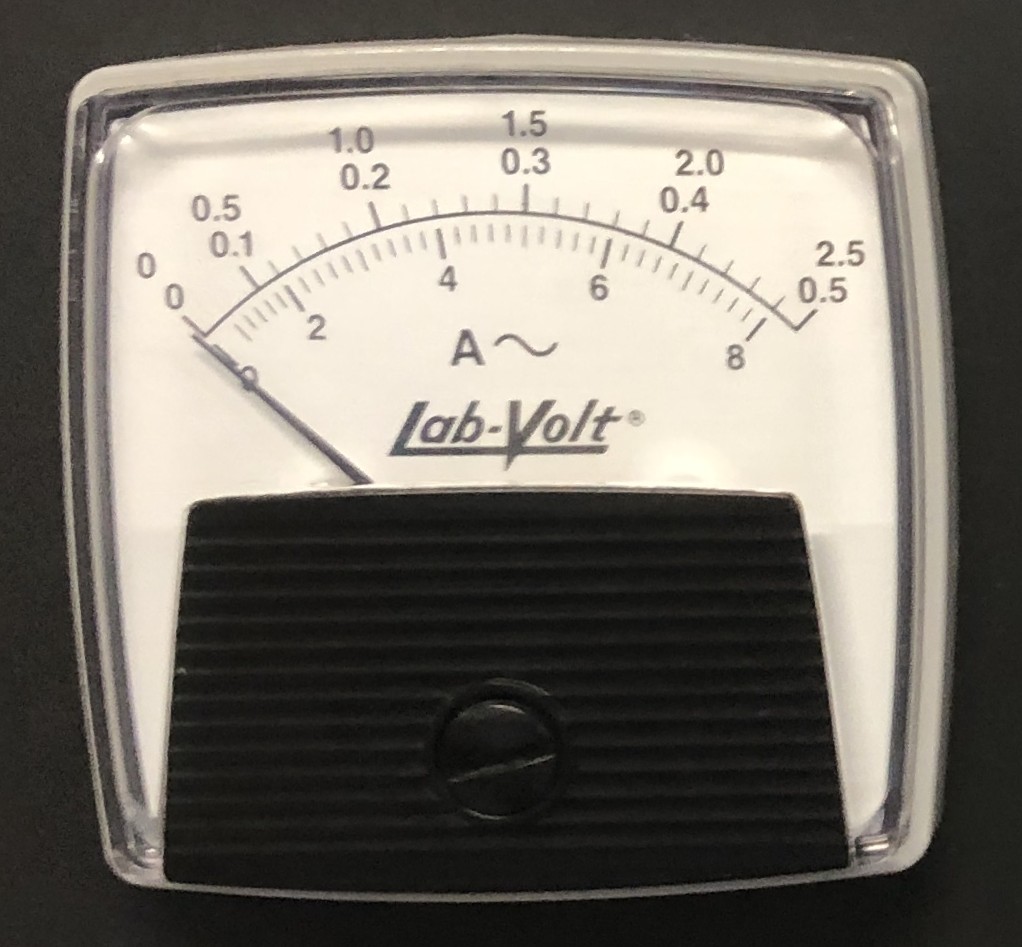

Amp Meter

Image (C) Copyright 2026 by Norbert Doerry – licensed via CC BY 4.0

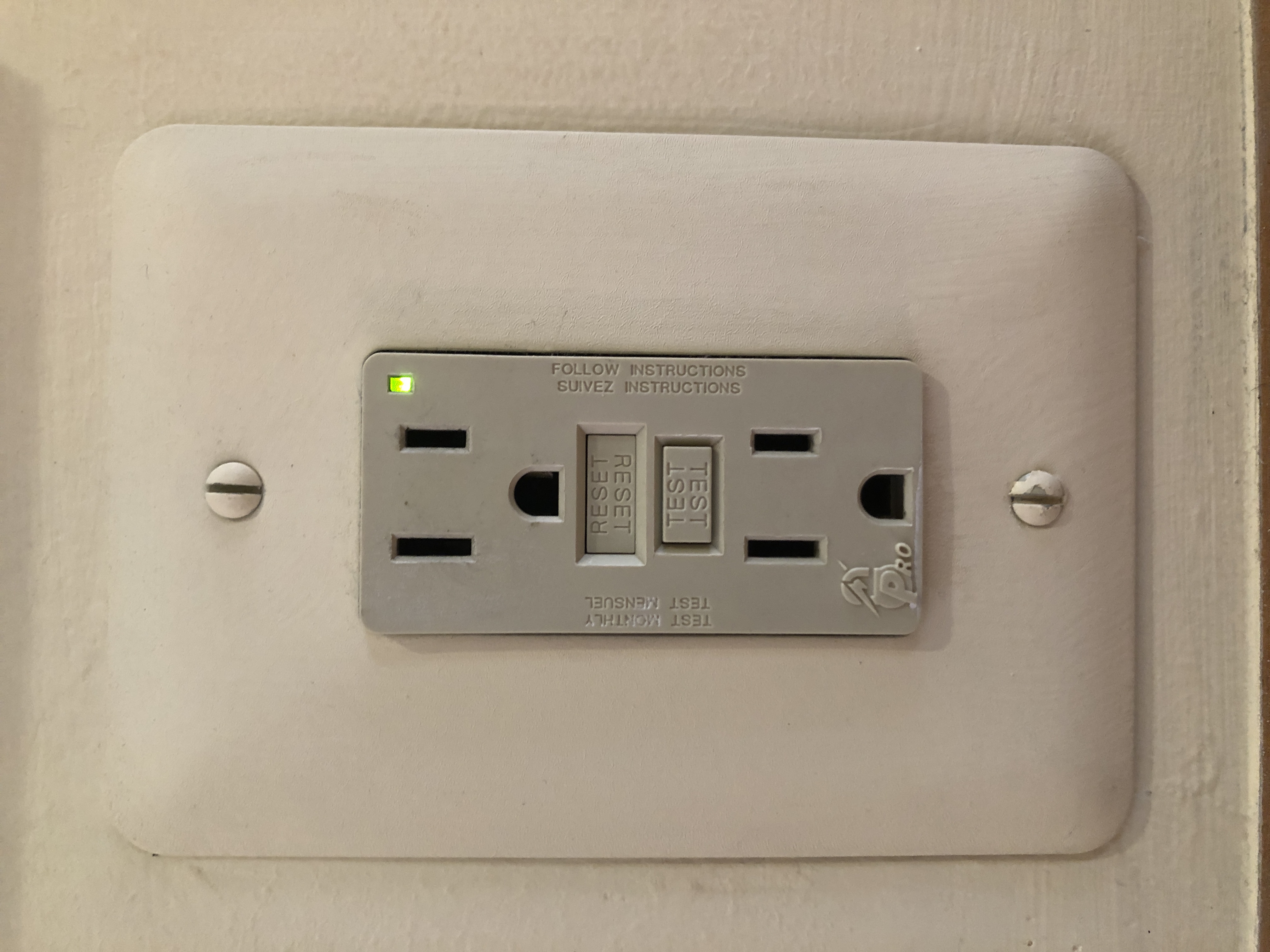

GFCI Outlet

Image (C) Copyright 2022 by Norbert Doerry – licensed via CC BY 4.0
