Zonal Load Factor Analysis Figures

Figures created by Norbert Doerry for the Zonal Load Factor Analysis document

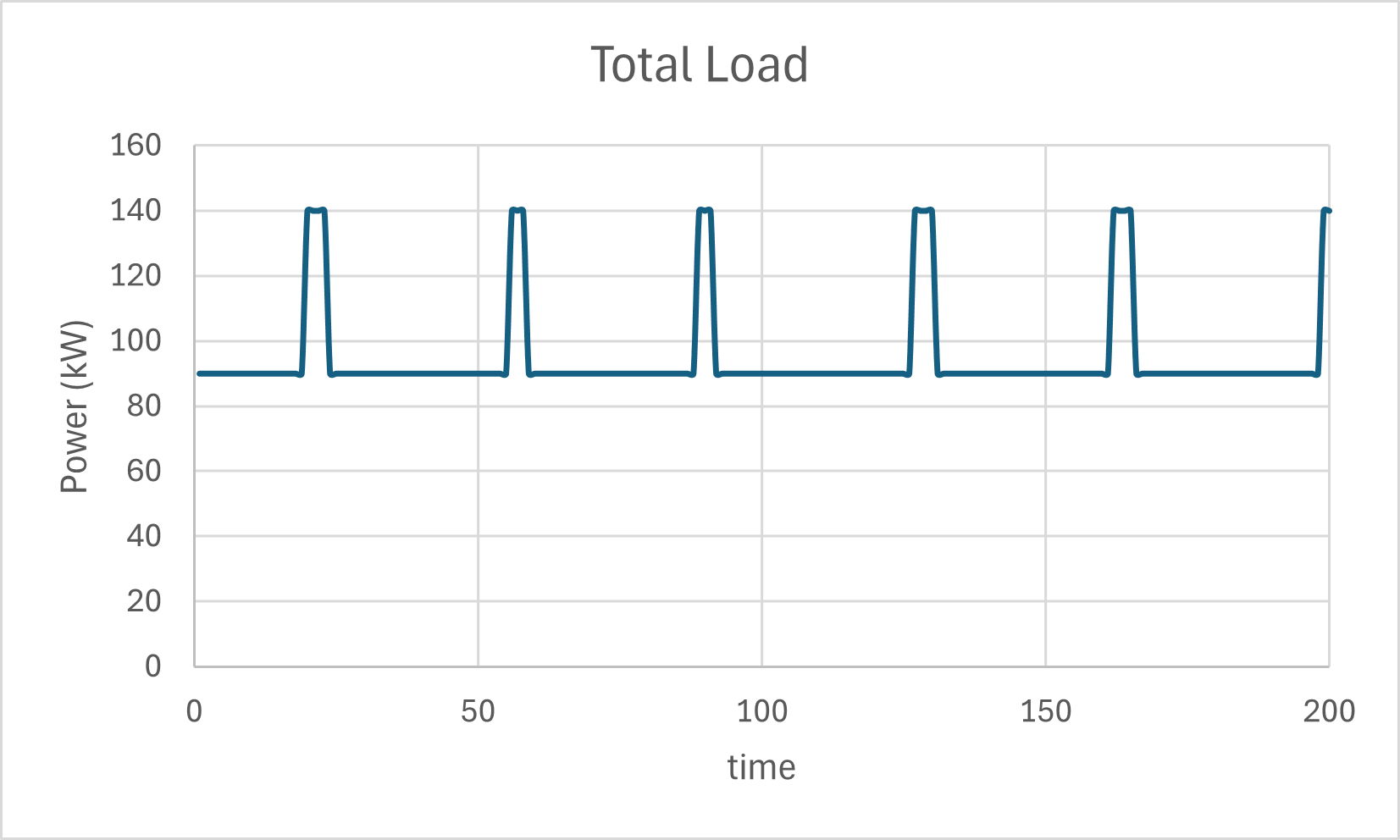

Cycling Load with nine 10kW constant power loads

Image (C) Copyright 2026 by Norbert Doerry – licensed via CC BY 4.0

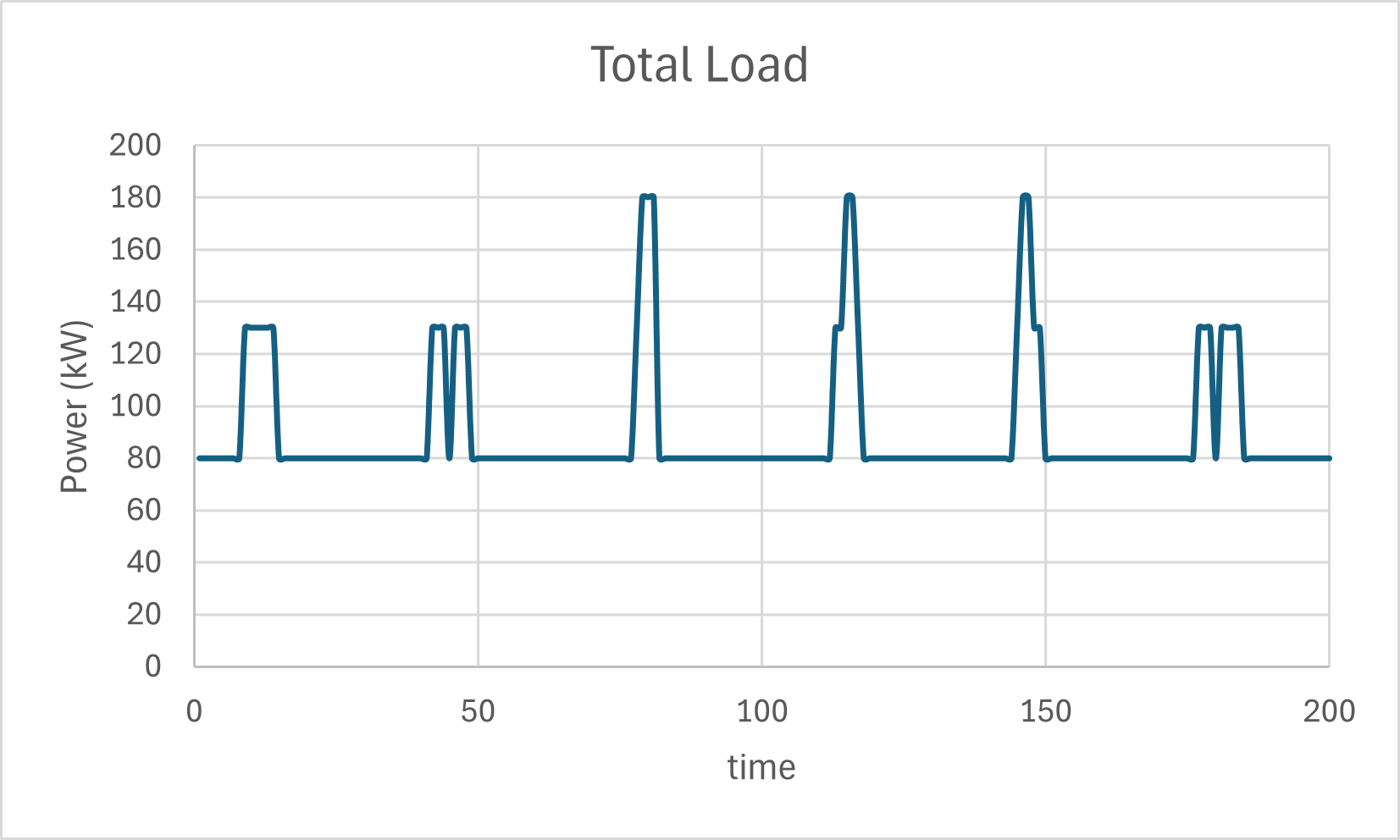

2 Cycling Loads with eight 10kW constant power loads

Image (C) Copyright 2026 by Norbert Doerry – licensed via CC BY 4.0

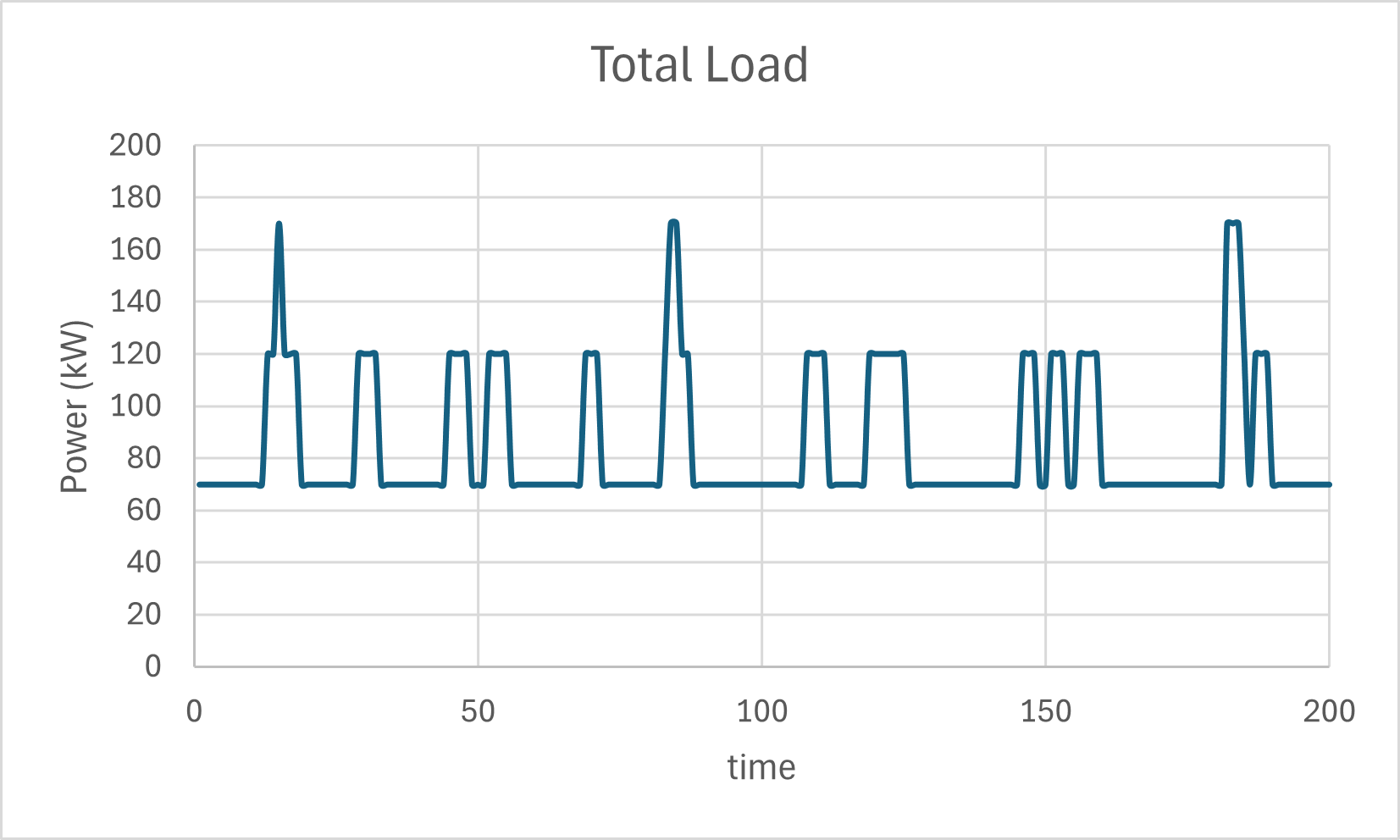

3 Cycling Loads with seven 10kW constant power loads

Image (C) Copyright 2026 by Norbert Doerry – licensed via CC BY 4.0
