Load Management - Load Shedding Figures

Figures created by Norbert Doerry for the Load Management - Load Shedding document

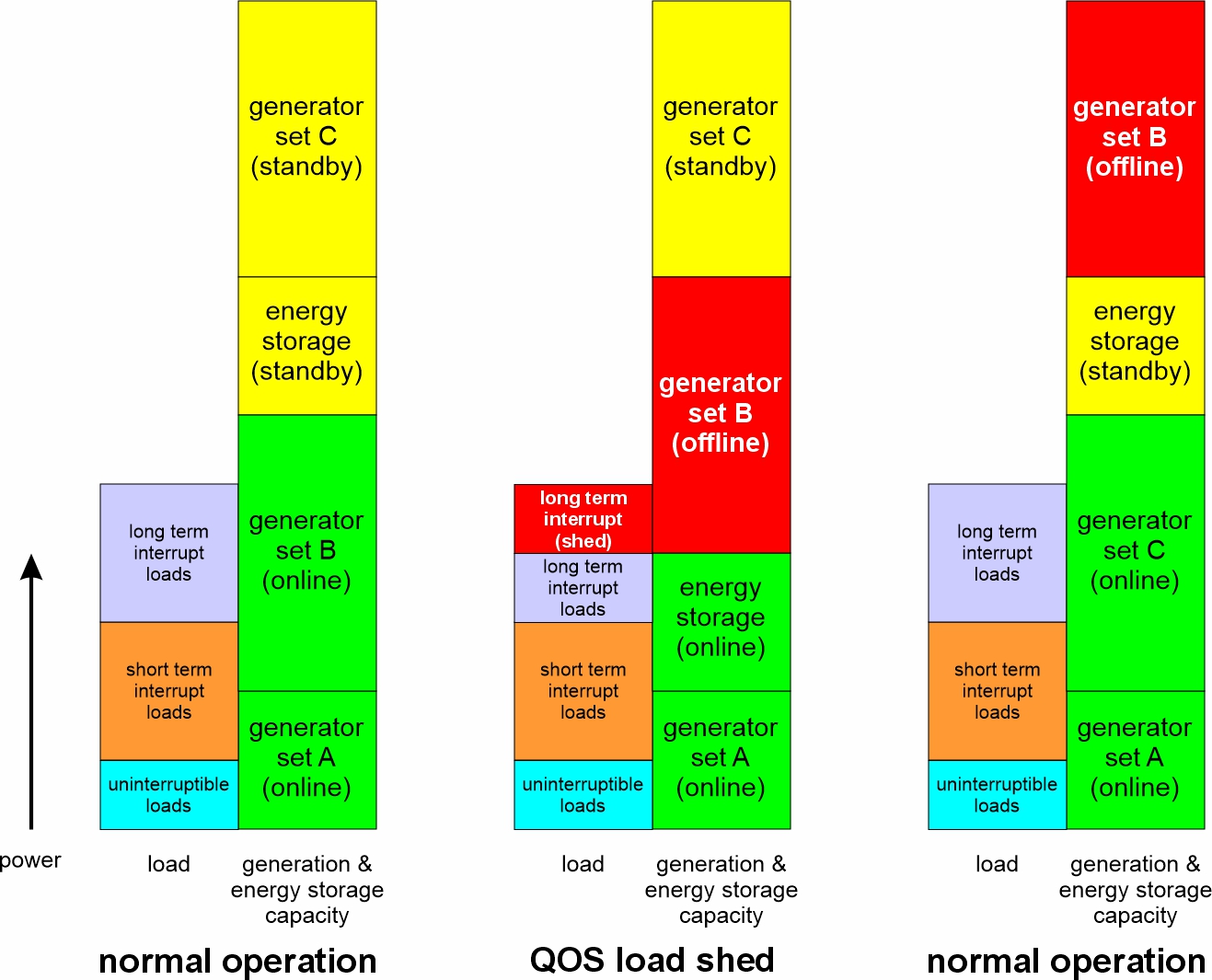

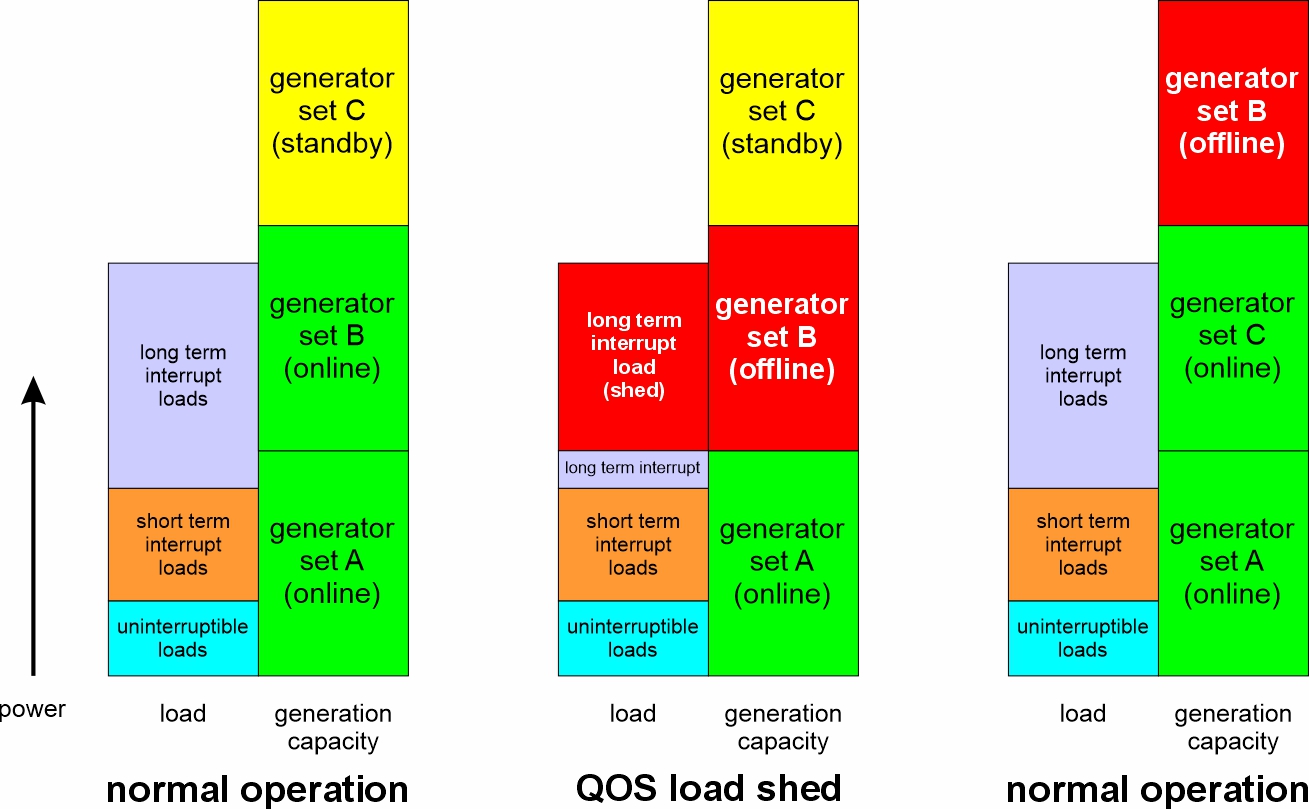

QOS load shedding - no energy storage

Image (C) Copyright 2025 by Norbert Doerry – licensed via CC BY 4.0

QOS load shedding - with energy storage

Image (C) Copyright 2025 by Norbert Doerry – licensed via CC BY 4.0

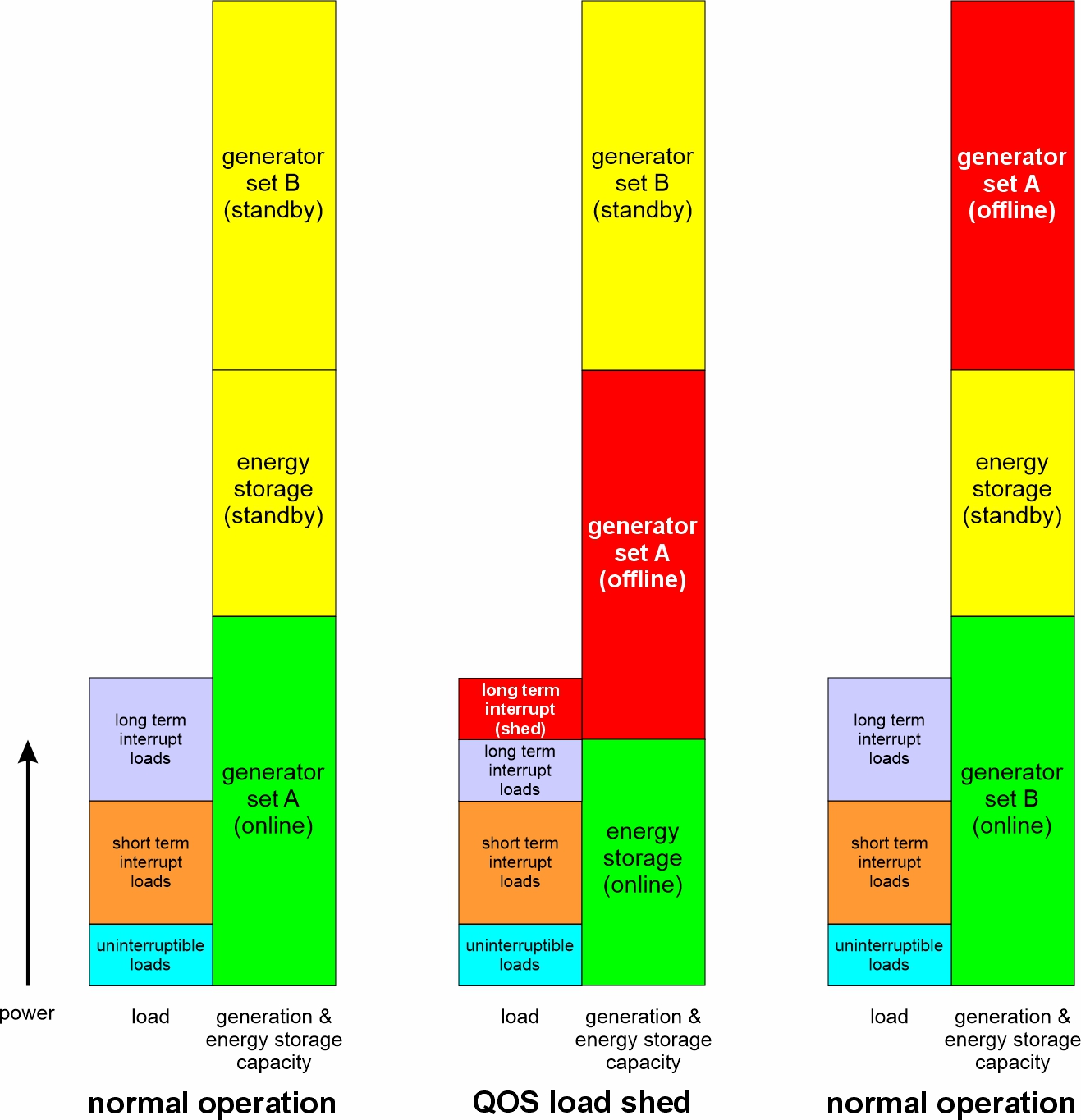

QOS load shedding - one generator set online with energy storage

Image (C) Copyright 2025 by Norbert Doerry – licensed via CC BY 4.0

QOS load shedding - large and small generator set with energy storage

Image (C) Copyright 2025 by Norbert Doerry – licensed via CC BY 4.0

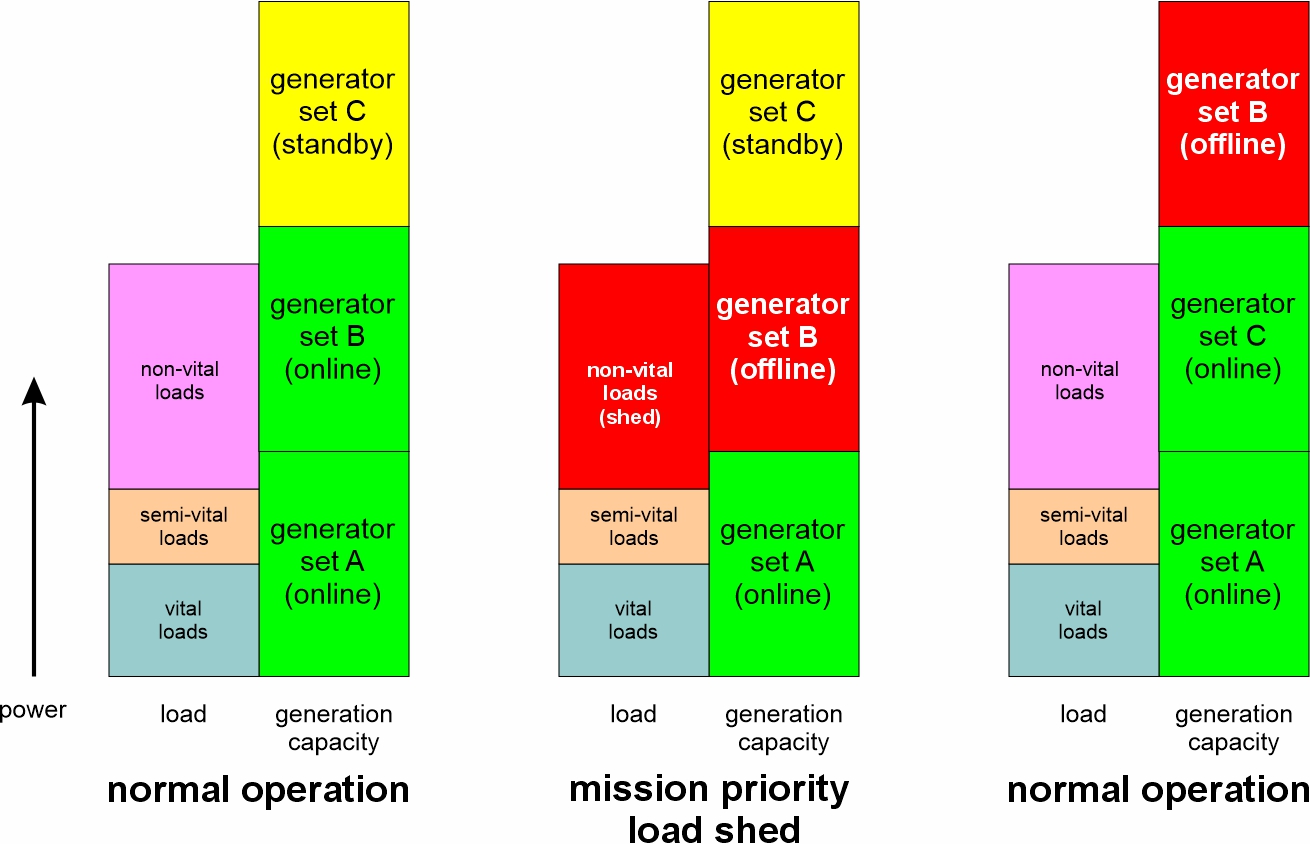

Traditional mission priority load shedding only

Image (C) Copyright 2025 by Norbert Doerry – licensed via CC BY 4.0

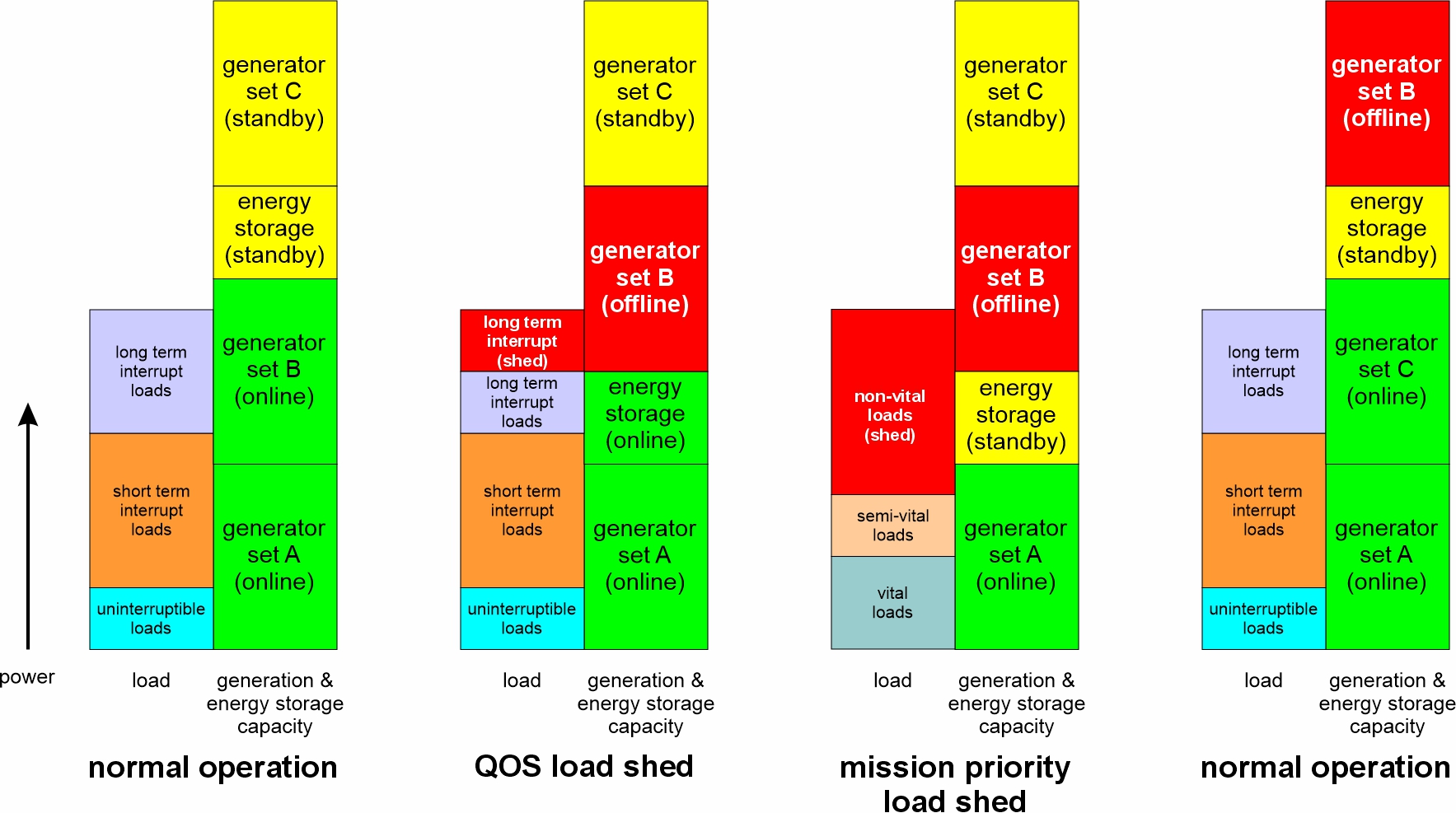

QOS and mission priority load shedding

Image (C) Copyright 2025 by Norbert Doerry – licensed via CC BY 4.0

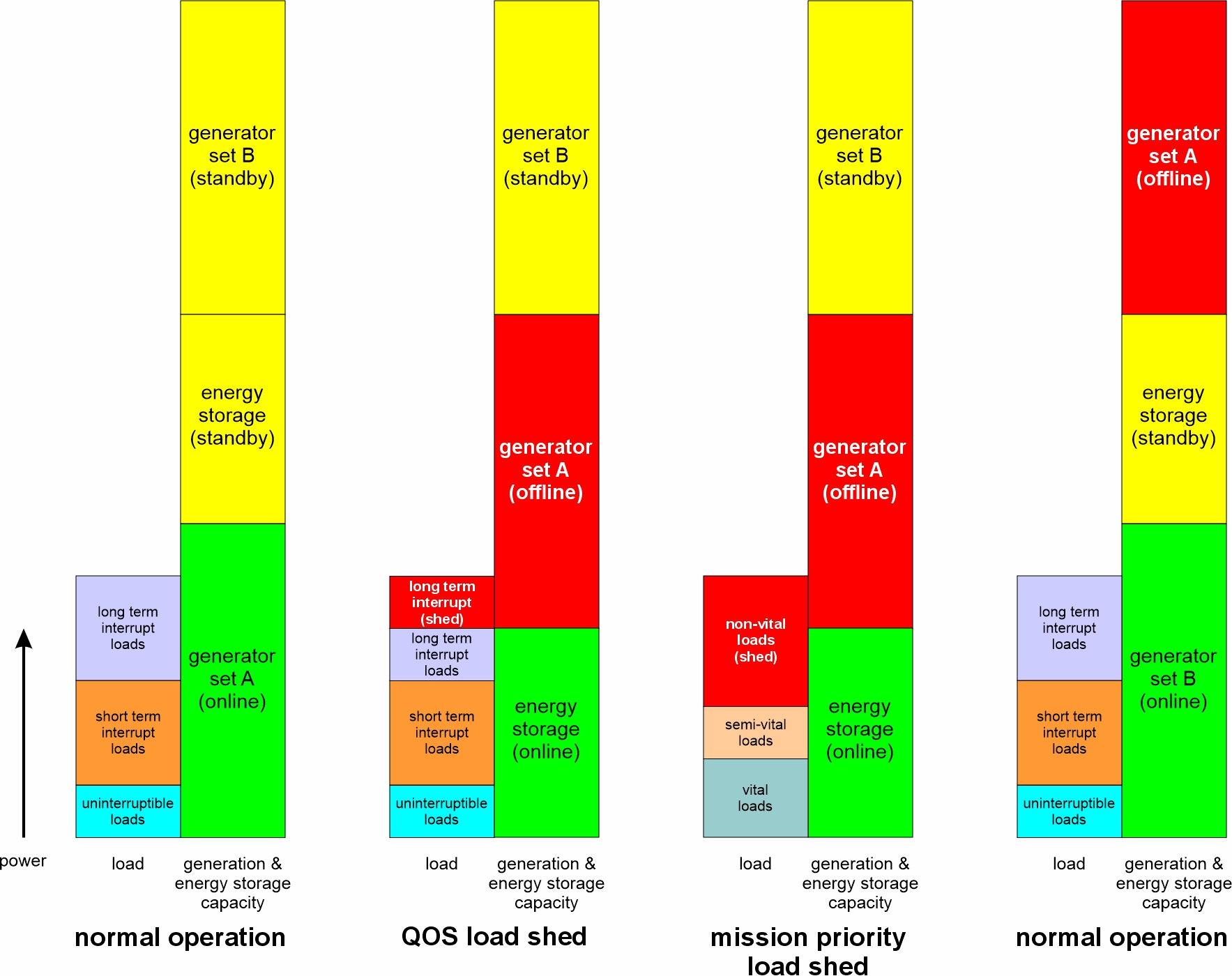

QOS and mission priority load shedding - one generator set online with energy storage

Image (C) Copyright 2025 by Norbert Doerry – licensed via CC BY 4.0

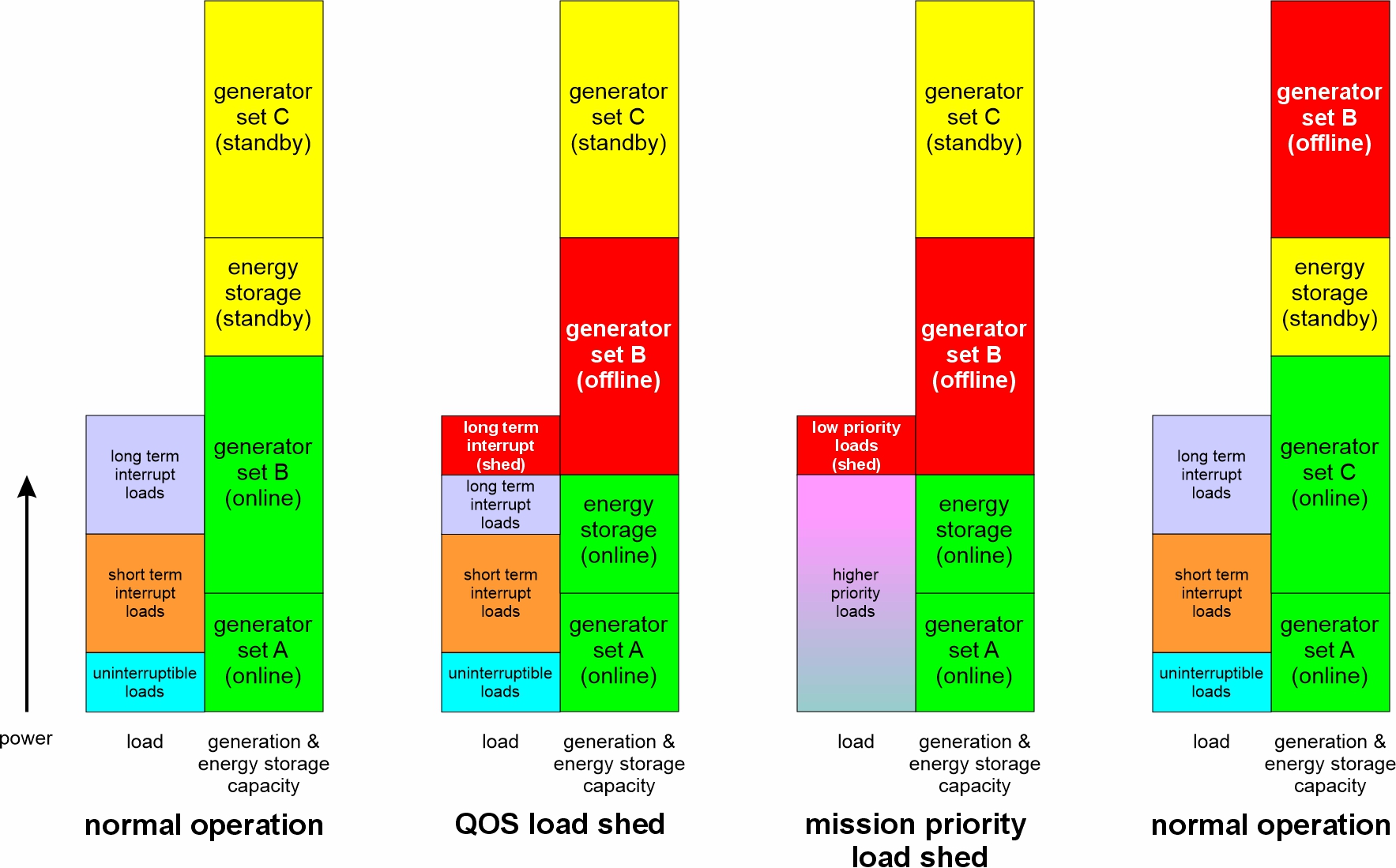

QOS and mission priority load shedding - adaptable mission priority

Image (C) Copyright 2025 by Norbert Doerry – licensed via CC BY 4.0

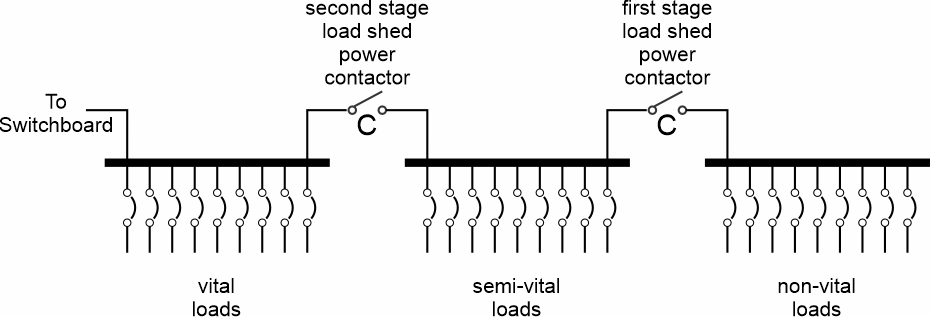

Traditional mission priority load shedding

Image (C) Copyright 2025 by Norbert Doerry – licensed via CC BY 4.0

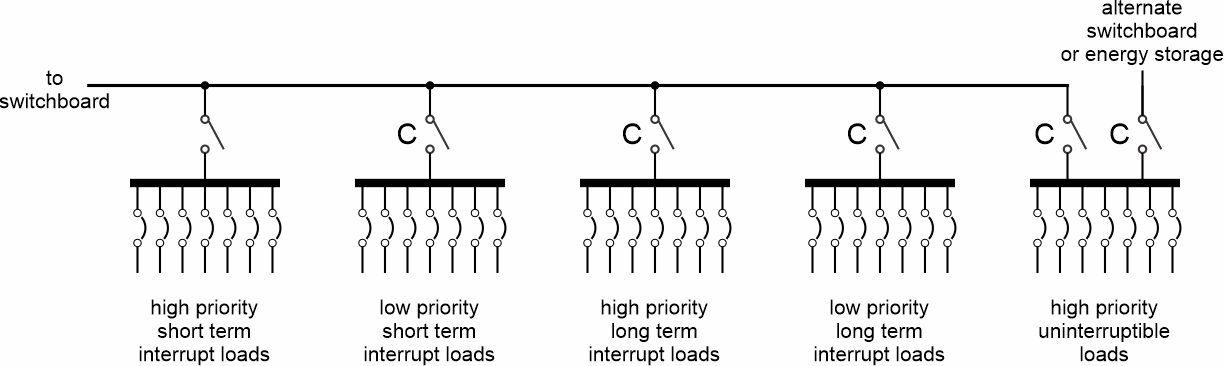

Traditional load shedding with QOS load shedding

Image (C) Copyright 2025 by Norbert Doerry – licensed via CC BY 4.0

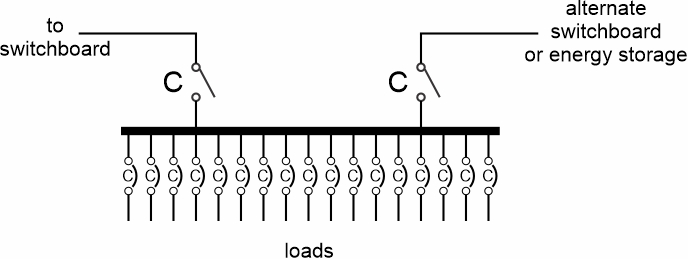

Controlled breaker load shedding implementation

Image (C) Copyright 2025 by Norbert Doerry – licensed via CC BY 4.0
